The original flat designed patch cables from EBS are tailored to make possible to reduce space on your pedal board, while maintaining the flexibility of using cables. The flat design also reduce the risk of cable jams, and keep your setup neat and clean. The latest update include a reinforced cable housing that improve durability.
PCF-10, 10 cm
PCF-18, 18 cm
PCF-28, 28 cm
PCF-58, 58 cm

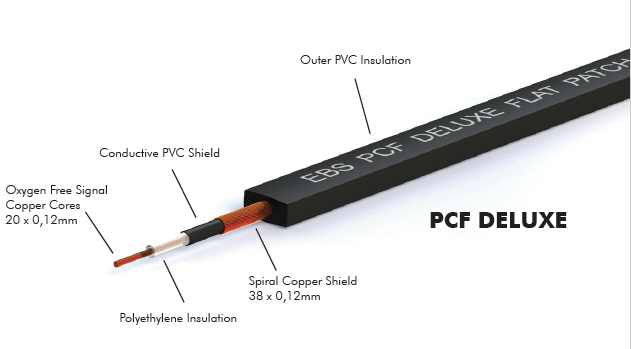

Construction & Technical Specifications:
Conductor: Flexible copper conductor low voltage audio signal system
Operating Temperature: -15ºC to +70°C
Outer Insulation: PVC (Polyvinyl Chloride)
Signal copper cores: 20 x 0,12mm
Signal Insulation: PE (polyethylene)
Copper twisted shield: 32 x 0,12mm
Capacitance Cond./Shield: < 10 pF/decimeters
Conductor Resistance: < 10 mOhm/decimeters
Dimensions: 7 x 3 mm (rectangular cable)
Connectors: ¼” 90 degrees angled audio plug
EBS Professional Patch cables are designed and developed by EBS in Sweden
and assembled in China.
Patent pending for USA and EU. Patented in Sweden.
