Fairfield Circuitry - 20% More slew limiting distortion

A slew limiter smoothes out how quickly incoming voltage can change, limiting it to a fixed v/sec. slope. since time and frequency are intrinsically linked, this acts as a steep, somewhat distorted low pass filter.
369,00 €
Inkl. 19% deutscher MwSt. (kann je nach Bestimmungsland variieren, finaler Preis wird beim Checkout angezeigt), , zzgl. Versand
Lieferzeit
4-7 Tage

English Version below.

Allgemeine Sicherheitshinweise

• Bevor Sie das Gerät in Betrieb nehmen drehen Sie bitte alle Regler auf Minimum bzw. auf „Null“.

• Lesen Sie die Bedienungsanleitung sorgfältig durch, bevor Sie das Gerät in Betrieb nehmen.

• Bewahren Sie die Bedienungsanleitung für zukünftige Referenz auf.

•Verwenden Sie das Gerät nur für den vorgesehenen Zweck.

• Halten Sie das Gerät von Wasser, Feuchtigkeit und extremen Temperaturen fern.

• Bewahren Sie das Gerät außerhalb der Reichweite von Kindern auf.

Elektrische Sicherheit

• Vergewissern Sie sich, dass die Netzspannung mit den Angaben auf dem Gerät übereinstimmt.

•Verwenden Sie nur das mitgelieferte Netzteil oder ein gleichwertiges, von einem Fachmann empfohlenes Netzteil.

• Ziehen Sie den Netzstecker, wenn das Gerät längere Zeit nicht benutzt wird.

• Schützen Sie das Netzkabel vor Beschädigungen.

• Verwenden Sie das Gerät nicht, wenn das Netzkabel beschädigt ist.

• Vermeiden Sie den Kontakt des Geräts mit Wasser oder anderen Flüssigkeiten, um das Risiko eines elektrischen Schlages zu minimieren.

Hinweise zur Reparatur

• Reparaturen dürfen nur von qualifiziertem Fachpersonal durchgeführt werden.

• Versuchen Sie nicht, das Gerät selbst zu öffnen oder zu reparieren, da dies zu schweren Verletzungen oder Schäden am Gerät führen kann.

• Bei Funktionsstörungen oder Defekten wenden Sie sich an einen autorisierten Service-Techniker oder an uns. info@effekt-boutique.de

Warnhinweise

• Öffnen Sie das Gerät nicht. Es enthält keine vom Benutzer zu wartenden Teile.

• Stellen Sie sicher, dass die Lüftungsschlitze des Geräts nicht blockiert sind, um Überhitzung zu vermeiden.

• Verwenden Sie das Gerät nicht in der Nähe von entflammbaren Materialien oder Flüssigkeiten.

• Ziehen Sie bei Gewitter oder längeren Betriebspausen den Netzstecker, um mögliche Schäden durch Spannungsspitzen zu vermeiden.

• Setzen Sie das Gerät nicht direkter Sonneneinstrahlung oder anderen Wärmequellen aus.

• Essen Sie keinen gelben Schnee

English

General safety instructions

• Before you start using the device, please turn all controls to minimum or “zero”.

• Read the operating instructions carefully before using the device.

• Save the instruction manual for future reference.

•Use the device only for its intended purpose.

• Keep the device away from water, moisture and extreme temperatures.

• Keep the device out of the reach of children.

Electrical safety

• Make sure that the mains voltage matches the information on the device.

•Use only the included power adapter or an equivalent power adapter recommended by a professional.

• Unplug the device if the device is not going to be used for a long period of time.

• Protect the power cord from damage.

• Do not use the device if the power cord is damaged.

• Avoid contact of the device with water or other liquids to minimize the risk of electric shock.

Repair instructions

• Repairs may only be carried out by qualified specialist personnel.

• Do not attempt to open or repair the device yourself as this may result in serious injury or damage to the device.

• In the event of malfunctions or defects, contact an authorized service technician or us. info@effekt-boutique.de

Warnings

• Do not open the device. It contains no user-serviceable parts.

• Make sure the device's ventilation slots are not blocked to avoid overheating.

• Do not use the device near flammable materials or liquids.

• During thunderstorms or long breaks in operation, pull out the power plug to avoid possible damage caused by voltage peaks.

• Do not expose the device to direct sunlight or other heat sources.

• Don't eat yellow snow

Hersteller / Manufacterer:

Fairfield Circuitry

Canada
J8Y 3W3
Gatineau
73 St Joseph Boul
(+1) 819 962 5130
info@fairfieldcircuitry.com
https://fairfieldcircuitry.com/



Imported by

MAS Distro Europe Ltd

Ireland Y35 E1X0

Bridgetown

Mulrakin

(+353)863058950

info@masdistro.com

www.masdistro.com

20% More slew limiting distortion

Explorations around a schematic found among old papers of mysterious origin, suspiciously similar to a datasheet sq/tri oscillator. All that was needed was to connect the dots.



SLEW LIMITER CORE

A slew limiter smoothes out how quickly incoming voltage can change, limiting it to a fixed v/sec. slope. since time and frequency are intrinsically linked, this acts as a steep, somewhat distorted low pass filter.

When it resonates (FEED), these fixed slopes become triangle wave oscillations, giving 20% more its unique sound. Your input signal can overwhelm this oscillation, making for pseudo-wavefolding and synthetic distortion artifacts.

This topology can result in quite a dark sound when SLEW is low, as there will not be much harmonic content present beyond the cutoff frequency. You can use BLEND to mix in a square wave signal that can help bring back some higher harmonics.

LOW PASS GATE

20% More has a slightly resonant, 2 pole, 12dB/oct low pass filter at it's output. It offers a nice counterbalance to the grit of the slew limiter, and allows tasteful reigning in of the crackling potential present in the circuit.

ENVELOPE FOLLOWER

There is a simple internal envelope, its main purpose is to allow high feedback settings while avoiding (possibly unwanted) oscillations when no input is present. Both envelope destinations achieve this through different means.

When the envelope goes to the LPG, it is a bit like a sidechain input, where your playing dynamics open up the filter and let highs pass through, giving some nice springy west coast bongos; the LPG knob needs to be set low for the gating to be effective.

When the envelope goes to FEED, the average feedback is lowered slightly, loud playing will bring it back up. As loud inputs also fight the oscillations, interesting swashes of noise arise as your notes decay.

Play with INPUT. Interactions become intuitive.

SUB OCTAVE

20% More can route a squared version of the signal to one or two filp-fiop based clock dividers, giving sub-octave and sub-sub-octave effects. It is only heard when BLEND is up somewhat. The sub octave is summed through diodes, giving it a characteristic 75% pulse.



FULL WAVE RECTIFIER

Envelope following requires a strictly positive input voltage. To achieve this, a full wave rectifier circuit is used. It is repurposed in the audio path as a switchable octave up. This particular implementation squishes very hard when INPUT is beyond noon. Enjoy.

CONTROLS

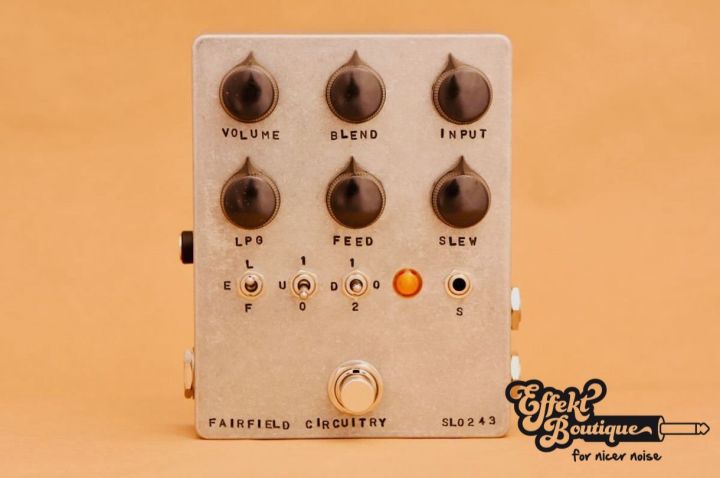

INPUT 'mu amp' jfet preamp, lots of gain

BLENDmixes in a square wave / sub-octave copy of the signal

VOLUME output volume, gets very loud

SLEW slew limiter frequency

FEED slew limiter feedback

LPG low pass filter

D - OCTAVE DOWN clock division of the blended square wave, -1 or -2 oct

U - OCTAVE UP analog octave up, full wave rectifier

E - ENVELOPE DESTINATION routing of the internal envelope either added to the (L)PG or (F)EED controls


INTERNAL CONTROLS

There are two user adjustable trimpots inside the pedal; they are labeled TR3 (drive) and TR2 (sens). The two other trimmers set the jfet bias and v/oct calibration, they should not be adjusted by the user.

DRIVE Sets the amount of signal going into the JFET clipping stage, another 20% more?

SENS(ITIVITY) Sets the gain of the internal envelope, allowing you to attenuate or exaggerate the response to your playing dynamics.

TECHNICALS


dimensions: 4. 7" X 3.8" X 1.9"


cv input range: 0 - 5v normal ; 0 - 8v max 9VDC

power supply: 20 mA@ 9.6 VDC
