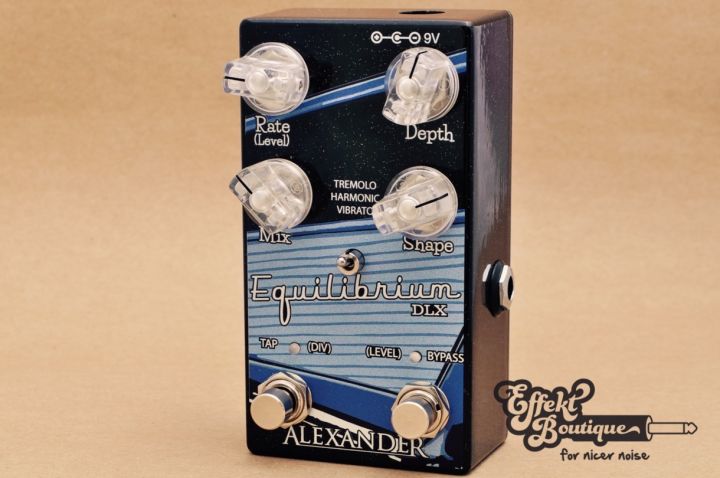

Alexander Pedals - Equilibrium DLX

The Equilibrium DLX is our updated vintage modulation pedal - evoking the buttery, sputtery, wobbly sounds of yesteryear. While the Equilibrium DLX sounds completely vintage, it crams all the "mod cons" into a pedalboard-friendly package.

Sonderangebot 245,00 € Normalpreis 269,00 €
Inkl. 19% deutscher MwSt. (kann je nach Bestimmungsland variieren, finaler Preis wird beim Checkout angezeigt), , zzgl. Versand
Lieferzeit
Auf Lager - Versand innerhalb 24 Stunden

The Equilibrium DLX is our updated vintage modulation pedal - evoking the buttery, sputtery, wobbly sounds of yesteryear. While the Equilibrium DLX sounds completely vintage, it crams all the "mod cons" into a pedalboard-friendly package.

Controls:

Rate (Level) — Adjusts the rate of modulation from a slow pulse to a rapid flutter. Turning this knob cancels the Tap Tempo setting. Holding down the Bypass / Level footswitch lets you adjust the overall output level of the effect. The Level setting is stored in the memory of the pedal for future use.

Depth — Controls the amount of modulation from barely perceptible to seasick.

Shape — Selects one of four waveforms to control the modulation effect: Sine, Ramp Up, Ramp Down, or Square.

Mix — Blends between the dry and the modulated signals.

*Hint: For traditional style tremolo, set the Mix knob fully clockwise.

Tap Tempo / Division - tap twice to set the modulation rate. The LED above the Tap switch flashes to indicate the current rate and division. Hold to toggle between normal-speed (green) and double-speed (red) settings.

Remote Tap Tempo Jack - connect a normally-open momentary footswitch to this jack to set the modulation time remotely. Hold down the remote footswitch to change tap divisions.



Mode Toggle:

Tremolo — Traditional tremolo based on the bias circuits from the earliest tube amps. Use the Shape control to morph from a very soft and smooth tremolo to a much harder burp-burp modulation.

Harmonic — Based on the vibrato circuits from the early ‘60s piggyback amplifiers. Blend in the dry signal for a queasy, seasick effect.

Vibrato — True '50s style frequency vibrato, just like Buddy Holly. Try it with a fast speed and 100% wet mix for the widest vibrato effect. Mixing in some dry signal makes the vibrato sound more like a phaser or photocell vibe unit.



Bypass Switching:

The Equilibrium DLX features buffered bypass switching with a soft-touch footswitch.

Power Supply:

The Equilibrium DLX requires a 9V DC power supply with a 2.1mm pin, center negative. The Equilibrium DLX is not designed to be powered on supplies higher than 9V and does not use a battery. The Equilibrium DLX should work fine on a multi-pedal "daisy chain" connector, but if you encounter excessive noise or hum try a separate power supply. The Equilibrium DLX requires approx. 75mA. Powersupply not included.
